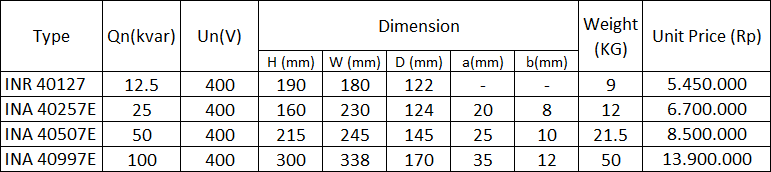

Detuned Reactor for Harmonic Protection Filter INA 40257E

Description

• Rated voltage of the main : 230 / 440 V
• Frequency : 50 Hz – 60 Hz
• Rated voltage of the capacitors : 260 / 460 V
• Filter type : Low tunning
• Resonance frequency : 189 Hz (7%)
• Inductance tolerance : ± 3%
• Maximum harmonics overload : 0.35 In

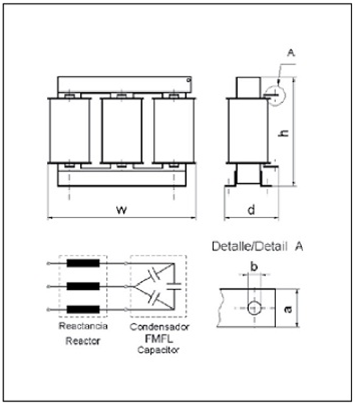

• Construction :
  INA : Aluminium
  INR : Copper
• Thermal protection : By thermostat
• Insulation level : 4 kV
• Connection :
  – INA : Aluminium Bus Bar
  – INR : Terminal Block
• Degree of protection : INA:IP00/ INR: IP20
• Category of temperature : Clase F(155ºC)
• Installation : Indoor
• Standards  :
  – IEC 60289, EN 60289
  – IEC 60076-6, EN 60076-6
